Trynox Sanitary ClampSense
Trynox Sanitary ClampSense
Adjust Your Torque Levels In Your Sanitary Fluids Operation With Precision
Trynox Clampsense is one of Chemseal’s premier sanitary stainless steel fitting products, intended to mitigate the possibility of cracking or gasket debris.
- Fits to sanitary stainless steel tubing
- Surface finishing 150 Grit OD
- Maximum operating pressure rating of 140 psi at 70 degrees Fahrenheit ambient temperature
- Suitable for use in food, beverage, and other hygienic applications
This sanitary stainless steel product has been masterfully designed to consistently achieve gasket intrusion levels of less than +0.025”/-0.008” into the flow path. As a precision limit torque adjustable heavy duty clamp, you can also mitigate the possibility of harmful bacteria growing in crevices that the CIP failed to adequately reached. Chemseal enjoys providing the best possible sanitary stainless steel products to the integral solutions market. Get the best sanitary fittings and clamps for your business today!

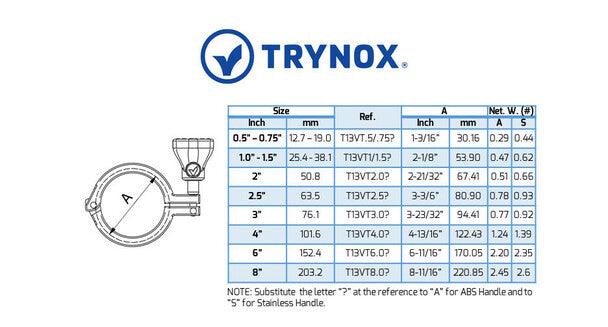

SPECS:
- Trynox ClampSense
- 304 grade
- 1” to 1.5”, 2”, 2.5”, 3” or 4” sizes
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Sanitary Gaskets General Performance Properties
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
Max Temperature Intermittent |
240Deg F |
410Deg F |
580Deg F |
300Deg F |
450Deg F |
578Deg F |
Max Temperature Continuous |
210Deg F |
380Deg F |
490Deg F |
260Deg F |
400Deg F |
526Deg F |
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
